ArchGuard 是一个由 Thoughtworks 发起的面向微服务(分布式场景)下的开源架构治理平台。它可以在设计、开发过程中,帮助架构师、开发人员分析系统间的远程服务依赖情况、数据库依赖、API 依赖等。并根据一些架构治理模型,对现有系统提出改进建议。

Architecture:

Architecture

Use ArchGuard:

核心理念:三态模型 + 双环守护

  • 设计态:目标架构。通过 DSL(领域特定语言) + 架构工作台来构建 。
  • 开发态:实现架构。关注于:可视化 + 自定义分析 + 架构治理。
  • 运行态:运行架构。结合 APM 工具,构建完整的分析链。

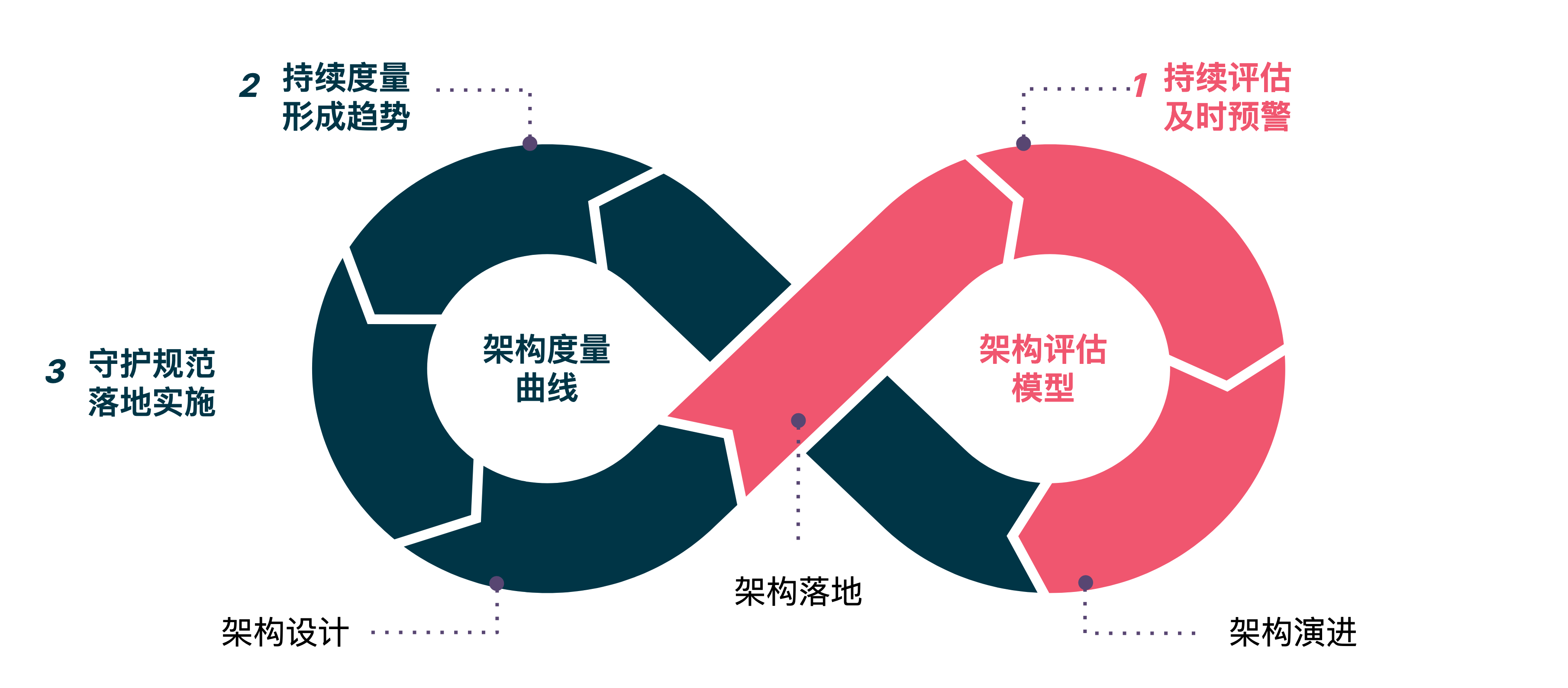

双环守护:

双环守护

特性(Features):

  • 设计态
    • 架构设计、分析与治理 DSL -> 参考:Fklang
  • 开发态
    • 架构扫描
      • 扫描配置
      • 插件化规则定制
    • 架构可视化
      • 基于 C4 模型的可视化分析
        • 上下文:API 服务地图(API 生产者支持语言:Java、Kotlin、C#,API 消费者支持语言:TypeScript/JavaScript、Kotlin、Java 等)
        • 容器分析。数据库地图(支持 MyBatis、JDBI、JPA)
        • 组件分析
        • 代码分析:支持级别模块、包、类、方法四个级别。
      • 高级分析 + 可视化
        • 系统不稳定性模块分析。
        • 容器间:精准测试/变化分析
    • 架构指标(单体DONE,分布式DOING)
      • 体量维度:过大的组件
      • 耦合维度:枢纽组件,过深调用,循环依赖
      • 内聚维度:霰弹式修改
      • 冗余维度:冗余元素,过度泛化
      • 质量维度:测试保护
    • 持续集成
  • 架构工作台
    • 查询整个组织的依赖信息
    • REPL 实时分析

Features:

  • Design State
    • Architecture Design, Analysis and Governance DSL -> Fklang
  • Development state
    • Schema scan
      • Scan configuration
      • Plug-in rule customization
    • Architecture visualization
      • Visual analysis based on C4 model
        • Context: API service map (API producer supported languages: Java, Kotlin, C#, API consumer supported languages: TypeScript/JavaScript, Kotlin, Java, etc.)
        • Container analysis. Database map (support MyBatis, JDBI, JPA)
        • Component analysis
        • Code analysis: supports four levels of modules, packages, classes, and methods.
      • Advanced Analysis + Visualization
        • System instability module analysis.
        • Between containers: precise testing/variation analysis
    • Architecture metrics (single DONE, distributed DOING)
      • Volume dimension: oversized components
      • Coupling dimension: hub components, too deep calls, circular dependencies
      • Cohesive Dimension: Shotgun Modification
      • Redundant dimensions: redundant elements, overgeneralization
      • Quality dimension: test protection
      • Continuous Integration
  • Architecture Workbench

Online Demo: https://archguard.dts.plus/

微信公众号: Wechat

Quick Start

Docker Compose

curl -s https://raw.githubusercontent.com/archguard/archguard/master/install.sh | bash -s master

or

git clone https://github.com/archguard/archguard
docker-compose up

Local setup

see in Setup

Docker 日志示例

➜  archguard-backend git:(master) ✗ docker-compose -p ArchGuard -f ./docker-compose.yml up -d
[+] Running 4/4
 ⠿ Container archguard_mysql     Healthy                                                                                                                                                                                                        0.5s
 ⠿ Container archguard_influxdb  Running                                                                                                                                                                                                        0.0s
 ⠿ Container archguard-backend   Running                                                                                                                                                                                                        0.0s
 ⠿ Container archguard-frontend  Started                                                                                                                                                                                                        1.3s
➜  archguard-backend git:(master) ✗ docker ps
CONTAINER ID   IMAGE                                 COMMAND                  CREATED          STATUS                             PORTS                                                    NAMES
9fa8ee495069   archguard/archguard-frontend:latest   "/docker-entrypoint.…"   10 minutes ago   Up 2 seconds                       0.0.0.0:11080->80/tcp, :::11080->80/tcp                  archguard-frontend
0c6064c84d4f   archguard/archguard-backend:latest    "java -jar /app.jar …"   10 minutes ago   Up 47 seconds (health: starting)                                                            archguard-backend
2450124197f2   mysql:8                               "docker-entrypoint.s…"   10 minutes ago   Up 35 seconds (healthy)            33060/tcp, 0.0.0.0:13306->3306/tcp, :::13306->3306/tcp   archguard_mysql
752459f7ccca   influxdb:1.8                          "/entrypoint.sh infl…"   10 minutes ago   Up 35 seconds (healthy)            0.0.0.0:8086->8086/tcp, :::8086->8086/tcp                archguard_influxdb

新建项目

Docker Compose 启动后,访问:http://localhost:11080/,就可以新建项目

  1. 添加:https://github.com/archguard/archguard,名称 Backend,选择 Kotlin 语言,再选择扫描
  2. 添加:https://github.com/archguard/archguard-frontend,名称 Frontend,选择 TypeScript 语言,再选择扫描

对于 Archguard 前端来说,因为源码是在 archguard/src 目录下,所以需要额外的配置源码路径

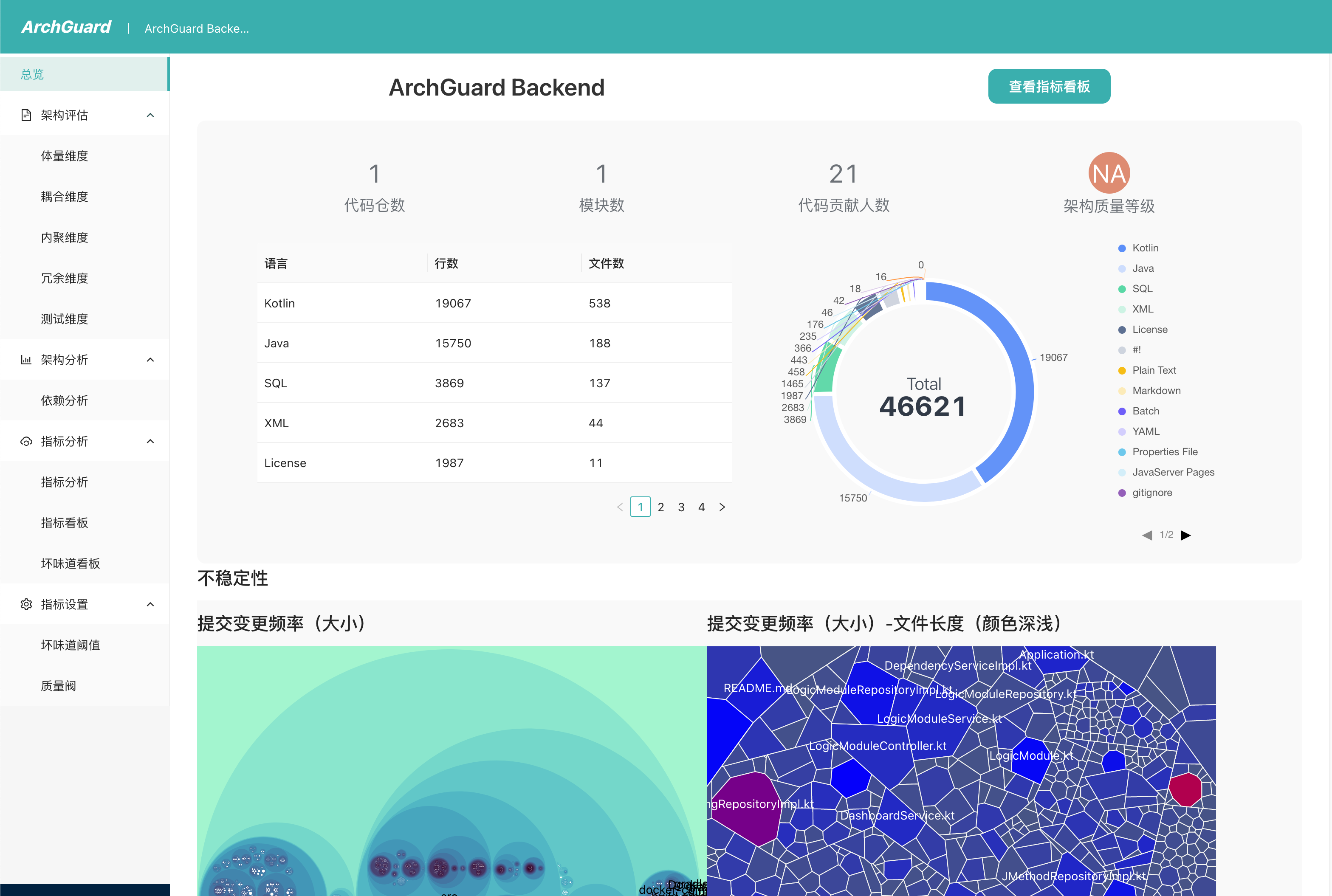

等待扫描完成,进入 Backend 就可以看到如下的页面:

Backend Overview

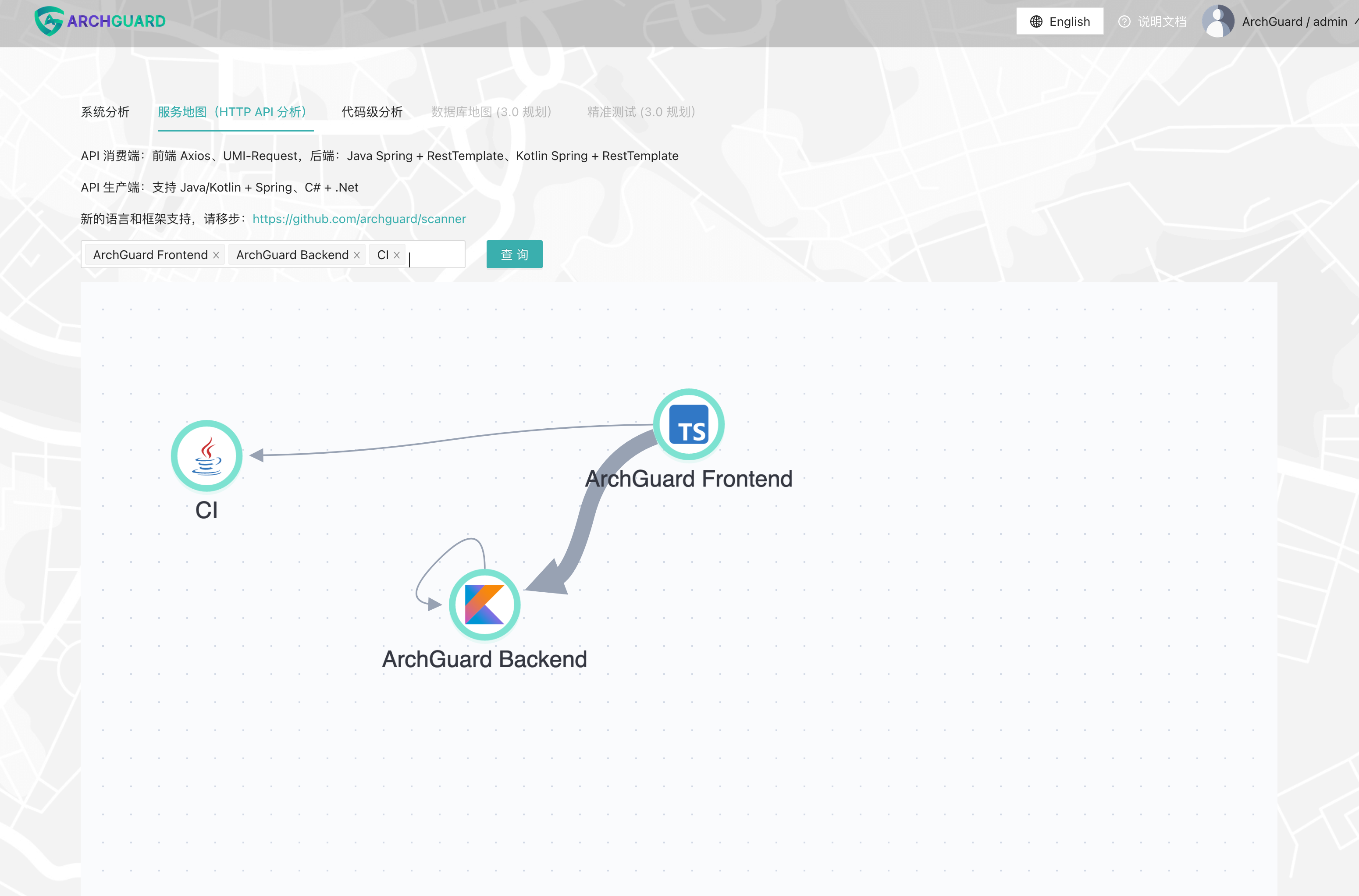

在服务地图可以看到类似于下面的页面:

Services Map

如果没有的话,请根据 FAQ 进行调整,或者提交新的 issue

成功日志示例:

2022-04-08 16:51:14.826  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:51:14.826  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis :  Finished level 1 scanners
2022-04-08 16:51:14.826  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:51:29.106  INFO 90471 --- [nio-8080-exec-4] c.t.a.m.i.influx.InfluxDBClient          : save metrics to InfluxDB
2022-04-08 16:51:29.107  INFO 90471 --- [pool-1-thread-1] c.t.a.s.i.client.AnalysisModuleClient    : Auto-define request to module-analysis for system 1
2022-04-08 16:51:29.108  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:51:29.108  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis :  Finished logic module auto define
2022-04-08 16:51:29.108  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:51:29.111  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : **************************************************************************
2022-04-08 16:51:29.111  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       :  Begin calculate and persist Level 2 Metric in systemId 1
2022-04-08 16:51:29.111  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : **************************************************************************
2022-04-08 16:51:29.248  INFO 90471 --- [-1 @coroutine#3] c.t.a.s.a.MetricPersistApplService       : Finished calculate methodMetric in systemId 1
2022-04-08 16:51:29.252  INFO 90471 --- [-1 @coroutine#3] c.t.a.s.i.m.MethodMetricRepositoryImpl   : Delete system method metric old data with id: 1
2022-04-08 16:51:29.252  WARN 90471 --- [-1 @coroutine#3] c.t.a.s.i.m.MethodMetricRepositoryImpl   : Insert system method metric new data with id is empty!: 1
2022-04-08 16:51:29.252  INFO 90471 --- [-1 @coroutine#3] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:51:29.252  INFO 90471 --- [-1 @coroutine#3] c.t.a.s.a.MetricPersistApplService       : Finished persist method Metric to mysql for in systemId 1
2022-04-08 16:51:29.252  INFO 90471 --- [-1 @coroutine#3] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:51:31.569  INFO 90471 --- [-1 @coroutine#4] c.t.a.s.a.MetricPersistApplService       : Finished calculate packageMetric in systemId 1
2022-04-08 16:51:31.573  INFO 90471 --- [-1 @coroutine#4] c.t.a.s.i.m.ModuleMetricRepositoryImpl   : Delete system package metric old data with id: 1
2022-04-08 16:51:31.595  INFO 90471 --- [-1 @coroutine#4] c.t.a.s.i.m.ModuleMetricRepositoryImpl   : Insert system package metric new data with id: 1
2022-04-08 16:51:31.595  INFO 90471 --- [-1 @coroutine#4] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:51:31.595  INFO 90471 --- [-1 @coroutine#4] c.t.a.s.a.MetricPersistApplService       : Finished persist package Metric to mysql for systemId 1
2022-04-08 16:51:31.595  INFO 90471 --- [-1 @coroutine#4] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:51:33.911  INFO 90471 --- [-1 @coroutine#5] c.t.a.s.a.MetricPersistApplService       : Finished calculate moduleMetric in systemId 1
2022-04-08 16:51:33.914  INFO 90471 --- [-1 @coroutine#5] c.t.a.s.i.m.ModuleMetricRepositoryImpl   : Delete system module metric old data with id: 1
2022-04-08 16:51:33.919  INFO 90471 --- [-1 @coroutine#5] c.t.a.s.i.m.ModuleMetricRepositoryImpl   : Insert system module metric new data with id: 1
2022-04-08 16:51:33.919  INFO 90471 --- [-1 @coroutine#5] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:51:33.919  INFO 90471 --- [-1 @coroutine#5] c.t.a.s.a.MetricPersistApplService       : Finished persist module Metric to mysql for systemId 1
2022-04-08 16:51:33.919  INFO 90471 --- [-1 @coroutine#5] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:51:56.265  INFO 90471 --- [-1 @coroutine#6] c.t.a.s.domain.service.DitService        : Finish calculate all DIT, count: 6600
2022-04-08 16:52:21.301  INFO 90471 --- [-1 @coroutine#7] c.t.a.s.domain.service.NocService        : Finish calculate all noc, count: 6600
2022-04-08 16:52:38.335  INFO 90471 --- [-1 @coroutine#8] c.t.a.s.domain.service.LCOM4Service      : Finish calculate all lcom4, count: 6600
2022-04-08 16:52:38.733  INFO 90471 --- [-1 @coroutine#2] c.t.a.s.i.m.ClassMetricRepositoryImpl    : Delete system class metric old data with id: 1
2022-04-08 16:52:39.958  INFO 90471 --- [-1 @coroutine#2] c.t.a.s.i.m.ClassMetricRepositoryImpl    : Insert system class metric new data with id: 1
2022-04-08 16:52:39.958  INFO 90471 --- [-1 @coroutine#2] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:52:39.958  INFO 90471 --- [-1 @coroutine#2] c.t.a.s.a.MetricPersistApplService       : Finished persist class Metric to mysql for systemId 1
2022-04-08 16:52:39.958  INFO 90471 --- [-1 @coroutine#2] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:52:42.313  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : Finished persist moduleCircularDependency in systemId 1
2022-04-08 16:52:44.676  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : Finished persist packageCircularDependency in systemId 1
2022-04-08 16:52:52.451  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : Finished persist classCircularDependency in systemId 1
2022-04-08 16:52:52.461  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : Finished persist methodCircularDependency in systemId 1
2022-04-08 16:52:52.461  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:52:52.461  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : Finished persist circularDependenciesCount for systemId 1
2022-04-08 16:52:52.461  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:53:12.301  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:53:12.301  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : Finished persist data class Metric for systemId 1
2022-04-08 16:53:12.301  INFO 90471 --- [pool-1-thread-1] c.t.a.s.a.MetricPersistApplService       : -----------------------------------------------------------------------
2022-04-08 16:53:37.145  INFO 90471 --- [pool-1-thread-1] c.t.a.s.i.client.Scanner2Client          : send metrics analysis request to module service
2022-04-08 16:53:37.145  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:53:37.145  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis :  Finished level 2 analysis metrics
2022-04-08 16:53:37.145  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:53:37.665  INFO 90471 --- [nio-8080-exec-6] c.t.a.m.i.influx.InfluxDBClient          : save metrics to InfluxDB
2022-04-08 16:53:37.765  INFO 90471 --- [nio-8080-exec-6] c.t.a.m.i.influx.InfluxDBClient          : save metrics to InfluxDB
2022-04-08 16:53:37.815  INFO 90471 --- [nio-8080-exec-6] c.t.a.m.i.influx.InfluxDBClient          : save metrics to InfluxDB
2022-04-08 16:53:37.835  INFO 90471 --- [nio-8080-exec-6] c.t.a.m.i.influx.InfluxDBClient          : save metrics to InfluxDB
2022-04-08 16:53:37.915  INFO 90471 --- [nio-8080-exec-6] c.t.a.m.i.influx.InfluxDBClient          : save metrics to InfluxDB
2022-04-08 16:53:37.917  INFO 90471 --- [pool-1-thread-1] c.t.a.s.i.client.AnalysisModuleClient    : BadSmellDashboard saved for system 1
2022-04-08 16:53:37.917  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:53:37.917  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis :  Finished bad smell dashboard
2022-04-08 16:53:37.917  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : ************************************
2022-04-08 16:53:37.917  INFO 90471 --- [pool-1-thread-1] t.a.s.d.a.ArchitectureDependencyAnalysis : SET SYSTEM INFO 1 SCAN FLAG TO :SCANNED
